Audio Technica
AT-N3600L Replacement Stylus

  atn3600L stylus

Replacement stylus for Audio-Technica AT3600L cartridge.

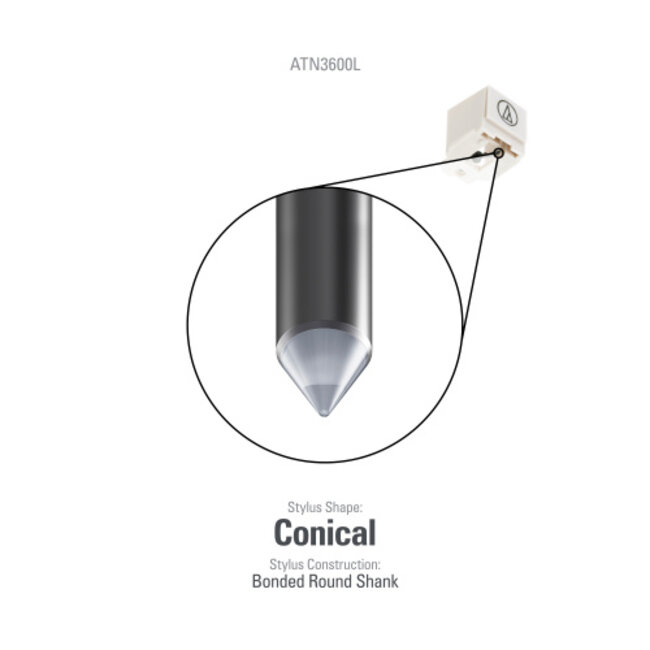

Stylus Shape: Conical
Stylus Dimension: 0.6 mil
Type: MM
Fixing: Half-inch mount
Output voltage: 3,5mV bei 1kHz, 5cm/sec.
Amplifier-connection: Phono MM
Frequency range: 20-20.000Hz

Availability:   In Stock
Delivery time:
€21,00 Incl. VAT (BTW)
Quantity:    In Basket

Replacement stylus for Audio-Technica AT3600L cartridge.

Stylus Shape: Conical
Stylus Dimension: 0.6 mil

Type: MM
Fixing: Half-inch mount
Output voltage: 3,5mV bei 1kHz, 5cm/sec.
Amplifier-connection: Phono MM
Frequency range: 20-20.000Hz

To remove old stylus (needle), hold the cartridge in one hand, grasp the plastic stylus housing with thumb and forefinger, and pull away from the cartridge. The stylus assembly comes away at a slight angle, as indicated by the arrow.

To install replacement stylus, insert the new stylus assembly into the cartridge at a slight angle, so the hook at the end of the stylus fits into the slot in the cartridge body. The stylus assembly should click into place when fully seated on the cartridge. The stylus must be fully seated on the body for proper operation.

Audio-Technica has been perfecting the art of transducer technology since our first hand-crafted phono cartridge in 1962. n screws, two washers
