Ortofon 2M Cartridge ( Mono ) (starndard or verso)

Ortofon 2M Cartridge ( Mono ) (starndard or verso)

€399,00Incl. VAT (BTW)
Op voorraad

Mono cartridge - The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without coloring the sound

------Also Verso mo... Lees meer..

  • Voor 15.00u besteld?

    Dan wordt je bestelling vandaag verzonden
  • Gratis verzending

    Voor orders vanaf €80,00
  • Een echte winkel

    Kom ook eens bij ons langs in Den Haag
  • Klantenservice?

    Bel 070 - 36 32 777 voor vragen, tips of advies

Productomschrijving

The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without coloring the sound

The name 2M was selected among several ideas. We wanted a modern name that would be easy to pronounce and to remember, and therefore an alpha numerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

The 2M series of cartridges feature Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and Super OM series.

We have optimized the design for ease of mounting the cartridge, weight and size to fit the most common turntables at the market today. 2M Series provides excellent compatibility in an assortment of playback systems and with a wide variety of phono preamps. To find the recommended Ortofon replacement cartridge for your turmtable/tonearm please visit our Replacement cartridges selector ».

The 2M Red Series features:



  • an improved engine, which provides an increased output of 5.5mV
  • a tipped Elliptical diamond and split pole pins with a copper wire
included:
  • 1 x Stylus brush
  • 1 x Screwdriver
  • 2 x Screw M2,5 x 5
  • 2 x Screw M2,5 x 7

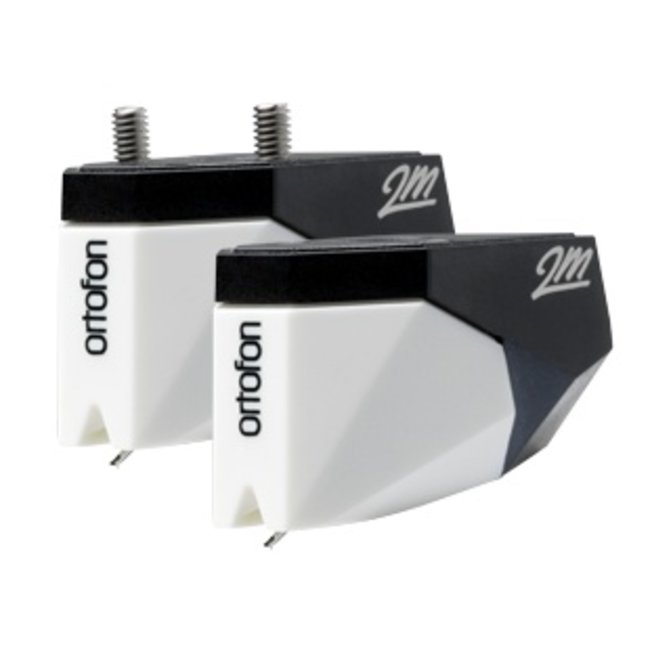

The new 2M Red Verso is an alternative product for bottom mount tonearms

For headshells where cartridge mount has to be from below, without all-through mounting holes in the shell itself, you need the Verso type. This cartridge has two bolts allready attached to the cartridge. A key to tight the bolts is included.

included:
  • 1 x Stylus brush
  • 1 x Allen key Torx 6
  • 1 x Allen key Torx 8
  • 2 x Screw M2,0 x 6




Specifications

Cartridge system
MM
Output voltage
4,0 mV
Frequency range
20-22000 Hz
Frequency response
20-20.000 Hz + 3 / - 1 dB

Reviews

0 beoordelingen

Specifications

Cartridge system
MM
Output voltage
4,0 mV
Frequency range
20-22000 Hz
Frequency response
20-20.000 Hz + 3 / - 1 dB
Tracking ability
70 µm
Compliance
18 µm/mN
Stylus type
Nude Spherical
Stylus tip radius
R 65 µm
Tracking force range
1,6-2,0g (16-20 mN)
Tracking force recommended
1,8 g (18 mN)
Tracking angle
20°
Internal impedance DC
700 Ohm
Internal inductance
300 mH
Recommended load Resistance
47 kOhm
Recommended load capacitance
150-300 pF
Cartridge weight
7,2 g
Replacement stylus
Stylus 2Mmono
