Ortofon
MC transformer ST-7

  MC Step-Up Transformer

Compact and stylish, the ST-7 has a solid housing supported by four rubber feet, which helps to reduce unwanted vibrations in the unit. High quality internal wires together with high quality gold plated terminals provide the optimum signal transmissi...

Availability:   Out of Stock
Delivery time:   2-4 days
€599,00 Incl. VAT (BTW)
Quantity:    In Basket

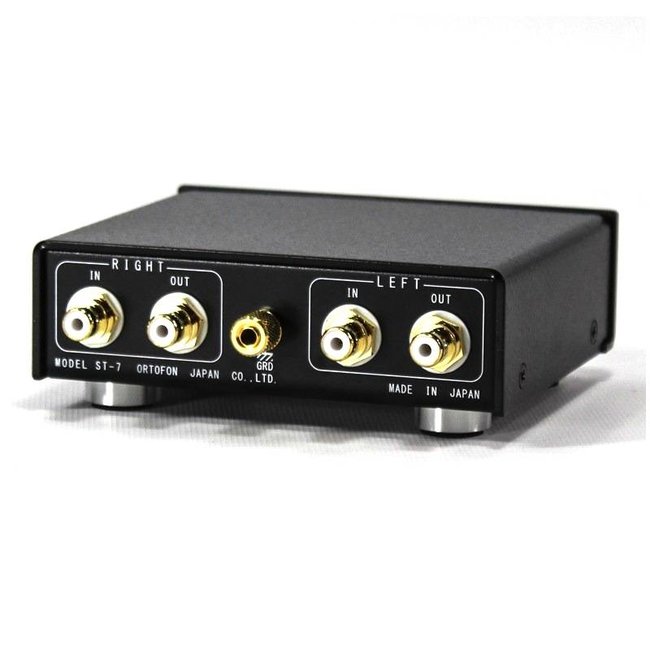

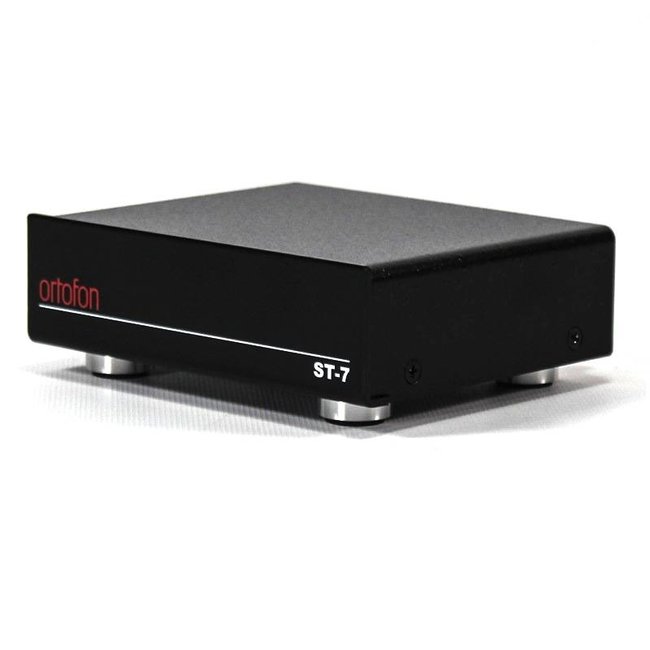

Compact and stylish, the ST-7 has a solid housing supported by four rubber feet, which helps to reduce unwanted vibrations in the unit.

High quality internal wires together with high quality gold plated terminals provide the optimum signal transmission. The sandwich winding structure, used in the ST-7, significantly improves the high frequency response and provides a very clear and open sound over the whole frequency range.

Additionally, the dual-mono design, including the individual shielding of the two channels, improves the imaging of the transformer and reduces the influence of environmental noise.

The ST-7 transformer will be a perfect match for, among other MC cartridges, the MC Quintet Series and the SPU Classic models.

  • Frequency response: 15-45 kHz (+0 dB -2,5 dB)
  • Gain: 24 dB at 1 kHz
  • Recommended cartridge impedance: 2 Ω - 60 Ω
  • Recommended load: 47 kΩ // 200 pF
  • Dimensions: 122 mm(W) × 43,5 mm(H) × 102 mm(D)
  • Weight: 790 g

important:

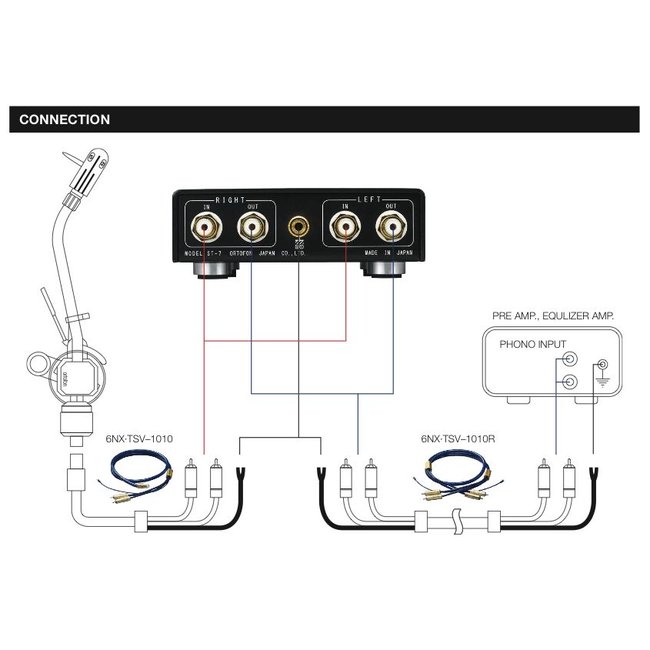

1.The output level of a step-up transformer is MM phono. Your amplifier needs to have a MM phono input OR you also need to have a separate MM phonostage which connect to your amplifiers line-input. see fig 4.
2. A step-up transformer can only be used  for low-output MC cartridged (for example Ortofon Quintet or Ortofon SPU)
Phonostage: MC Step-Up Transformer
Input impedance, MC: 47kOhm 200pF
Gain, MM: 40dB
Gain, MC: 24dB at 1kHz
Power Supply: none
Dimensions (mm): 122(W) x 43.5(H) x 102(D) mm
Weight: 790 grams
