ProJect

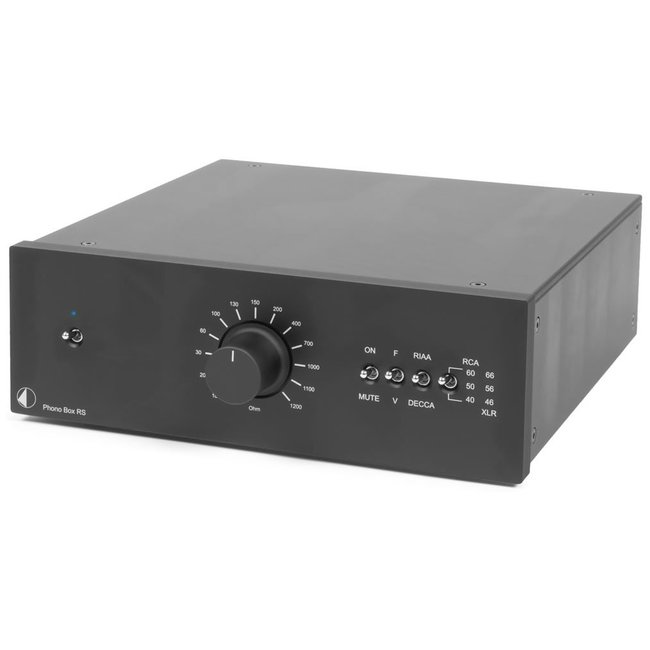

Phono Box RS

  MM/MC phonostage

Fully passive RIAA and DECCA equalisation is selectable. Phono Box RS offers fully balanced circuitry and both XLR and RCA inputs and outputs. All in all vinyl playback will never have sounded as clear, detailed and smooth, than with this superlative...

Availability:   In Stock
Delivery time:
€799,00 Incl. VAT (BTW)
Quantity:    In Basket

Reference class phono preamplifier with unique impedance control

This ultra low noise and distortion preamplifier is made for the audio conniosseur and offers not only breathtaking performance but is capable to adapt to virtually any phono cartridge through variable impedance control. Impedance adjustment can be done while playback! Due to use of best parts, like SSM2019 from Analod Devices as input stages and Linear Technology LT1010 as high current buffer stage, Phono Box RS delivers ultra low levels of distortion and noise. Its very low output impedance makes it insensitive to selection of interconnect cables and lenghts.

Fully passive RIAA and DECCA equalisation is selectable. Phono Box RS offers fully balanced circuitry and both XLR and RCA inputs and outputs. All in all vinyl playback will never have sounded as clear, detailed and smooth, than with this superlative phono stage!

• MM & MC capable

• Fully balanced double mono design

• Fully passive RIAA & DECCA equalisation

• Unique continously variable input impedance loading,

  matches every cartridge (adjustment even while playing)

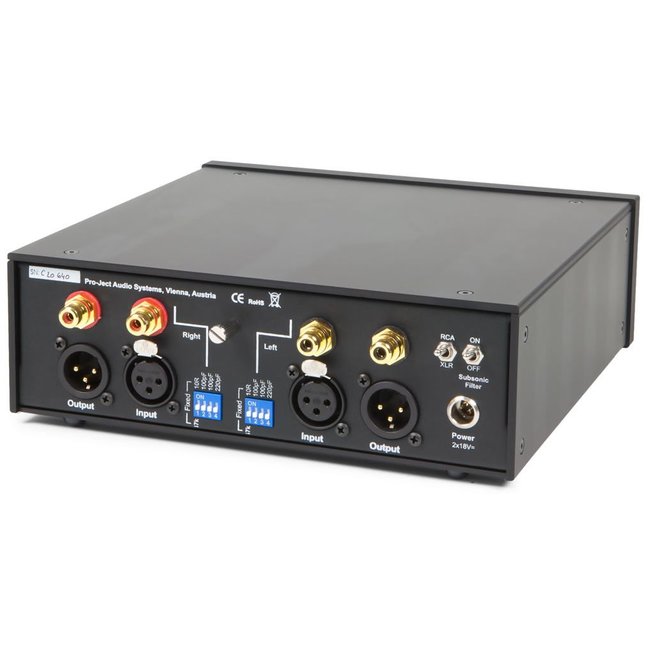

• RCA & XLR In & Out

• Superior low noise / low distortion

• Classy & elegant dip switches

• Metal casing protects against vibration and interference

• Faceplate silver or black



 download the user manual here:  user manual pdf

Phonostage: MM/MC phonostage
Input impedance, MM: 47k Ohm fixed, 10-1200 Ohm variable
Input impedance, MC: 10 Ohm fixed, 10-1200 Ohm variable, 100/200/300/420/520pF
Gain, MM: RCA 40dB/50dB/60dB switchable, XLR +6dB
Gain, MC: RCA 40dB/50dB/60dB switchable, XLR +6dB
Output impedance: 50 Ohm
Noise floor, MM: 80dB (91dB A weighted)
Noise floor, MC: 80dB (91dB A weighted)
THD, MM: 0,019%
THD, MC: 0,019%
RIAA curve accuracy: 20Hz-20kHz max 0,3dB
Subsonic filter: 20Hz -12dB
Power Supply: 2x 18V/300mA DC, included
Standby power consumption: <1 W
Dimensions (mm): 206 x 72 x 200 (210 with sockets)
Weight: 2000g without power supply
