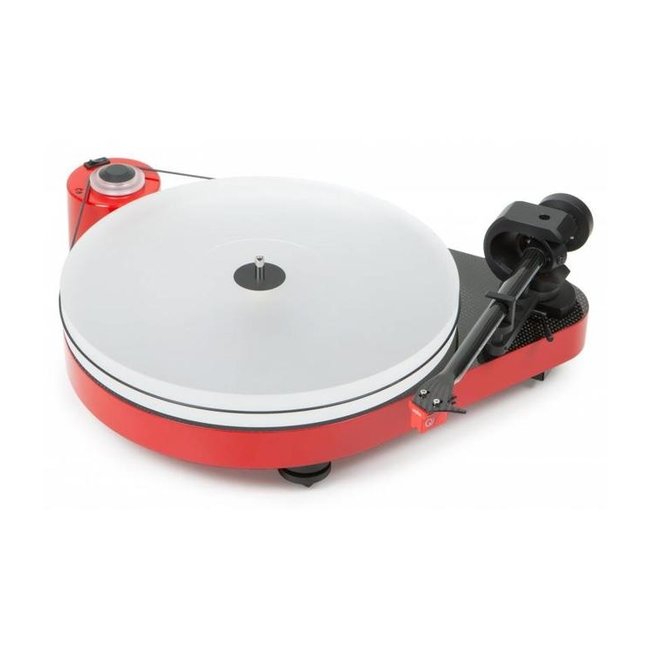

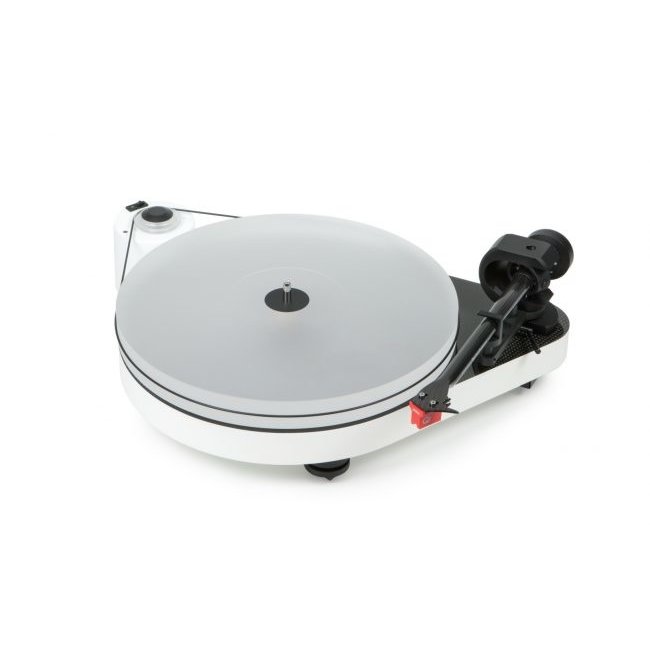

Pro-Ject RPM 5Carbon

Ingenious styling for audiophile listener:

RPM 5 Carbon utilizes a radical concept with a lot of innovations, that originate from its big brother RPM 9 Carbon: A low resonance chassis holds a newly designed inverted platter bearing with ceramic ball for a further reduced rumble. The acoustically inert platter is made from acrylic. An outboard 15V AC motor is smoothly driven using an ultra-precision AC generator with DC power supply for further enhanced speed stability. The classy 9“ cc Evo tonearm, which is made from carbon fibre is suitable for any high-quality MM or MC cartridge. A TPE-damped counterweight eliminates unwanted resonances. All ingredients add up to a miracle in sound for the price. Its ultra-stylish look is available in 3 exclusive high-gloss finish versions.

1. Features:

• Precision belt drive using a free-standing synchronous motor
• Ultra-precision DC-driven AC generator motor power
• Inverted platter bearing with ceramic ball
• Acoustical inert acrylic platter
• 9” cc EVO tonearm made from carbon
• Counterweight with TPE damping
• Adjustable aluminum tip-toe feet
• Available with or without Ortofon Quintet red cartridge
• Three high-gloss colours (black, red, white)
• Lid available as an optionable in: White, Red, Black

2. Technical Specifications

• Speed 33, 45 (manual speed change)
• Drive principle Belt drive
• Platter 300 mm acrylic
• Mains bearing Stainless steel axle with ceramic ball
• Speed drift 33: +/- 0.12% I 45: +/- 0.10%
• Wow & flutter 33: +/- 0.17% I 45: +/- 0.08%
• Signal to noise 73dB
• Tonearm 9” CC EVO carbon
• Effective arm length 230 mm
• Effective arm mass 8 g
• Overhang 18 mm
• Tracking force  0 - 25 mN
• Included accessories 15 volts DC / 500 mA power supply
• Power connection 110/240 Volt - 50 or 60 Hz
• Power consumption 5 watt max / < 0,5 watt standby
• Dimensions 430 x 150 x 323 mm (WxHxD)
• Weight 8.0 kg net
