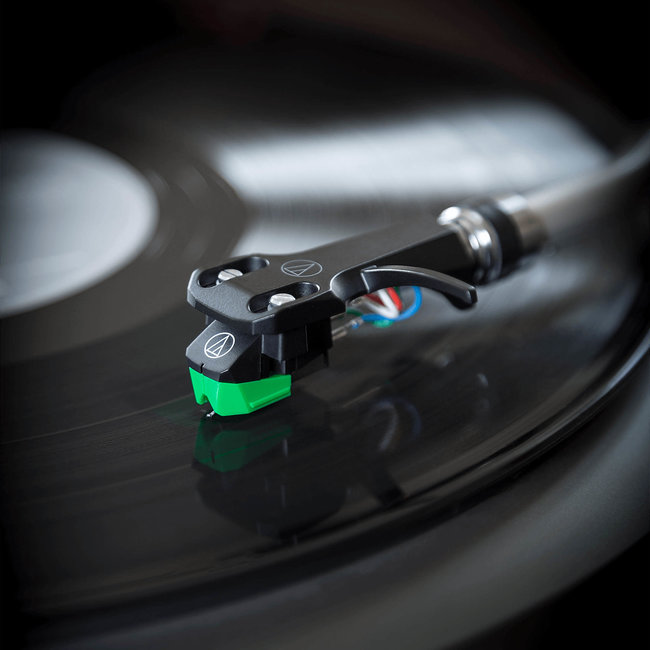

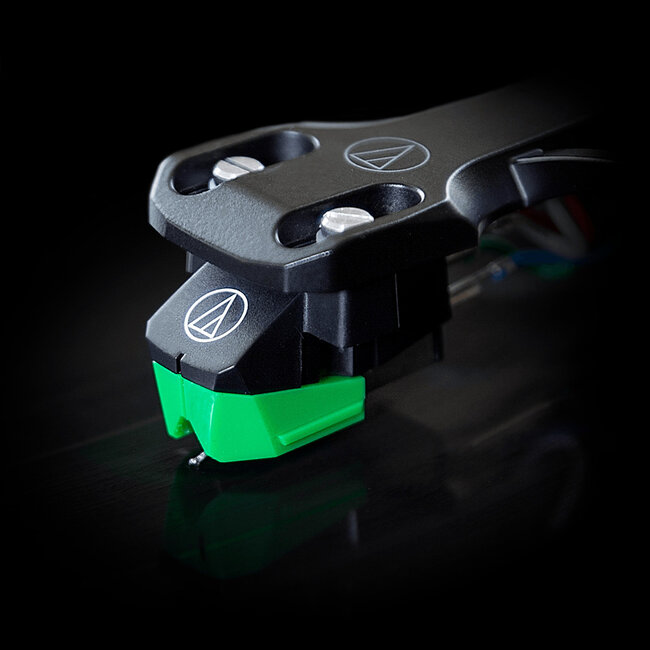

Audio Technica
AT-VM95E Cartridge
MM 3.5mV (1kHz, 5cm/sec) elliptical diamond 6.5 grs
The half-inch standard mount AT-VM95E phonograph cartridge offers outstanding clarity and detail. Reviewers have rated this affordable, high-performance cartridge as a best buy value. Manufactured to Audio-Technica's renowned quality standards, each ca..
This VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
Cartridge & Stylus | |
---|---|
Frequency Response | 20 - 22,000 Hz |
Channel Separation | 20 dB (1 kHz) |
Vertical Tracking Angle | 23° |
Vertical Tracking Force | 1.8 to 2.2g (2.0g standard) |
Stylus Construction | Bonded Round Shank |
Output voltage: 3.5mV (1kHz, 5cm/sec)
Channel balance 1kHz: < 2.0dB
Channel separation 1kHz: >20dB at 1 kHz
Frequency range: 20-20.000 Hz
Compliance: dynamic 6.5x10-6, static 20x10-6

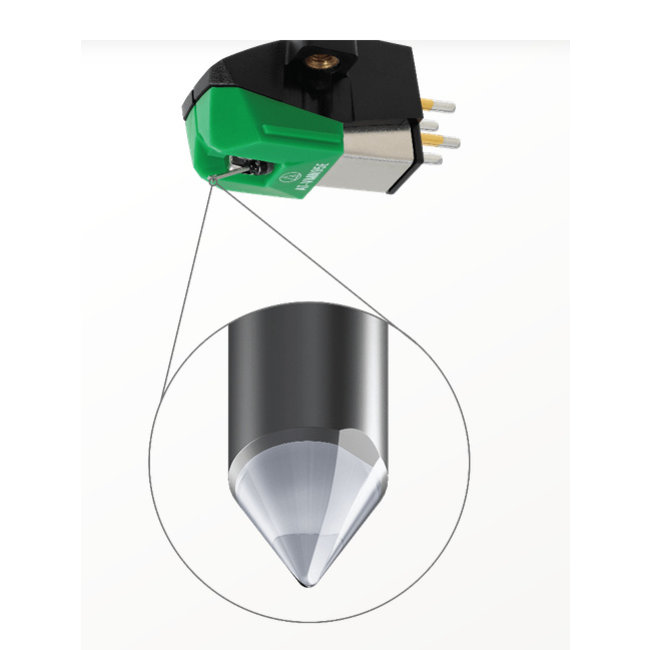

Stylus type: elliptical diamond
Stylus tip radius: 0.4 x 0.7 mil
Tracking force range: 1.5-2.5 grs
Tracking force recommended: 2.0 grs (20mN)
Tracking angle: 20 degr
Internal impedance DC: 2800 ohm at 1kHz
Internal inductance: 400mH at 1kHz
Recommended load Resistance: 47000 ohm
Recommended load capacitance: 100-200 pF
Cartridge weight: 6.5 grs
Replacement stylus: ATN95E
