Audio Technica

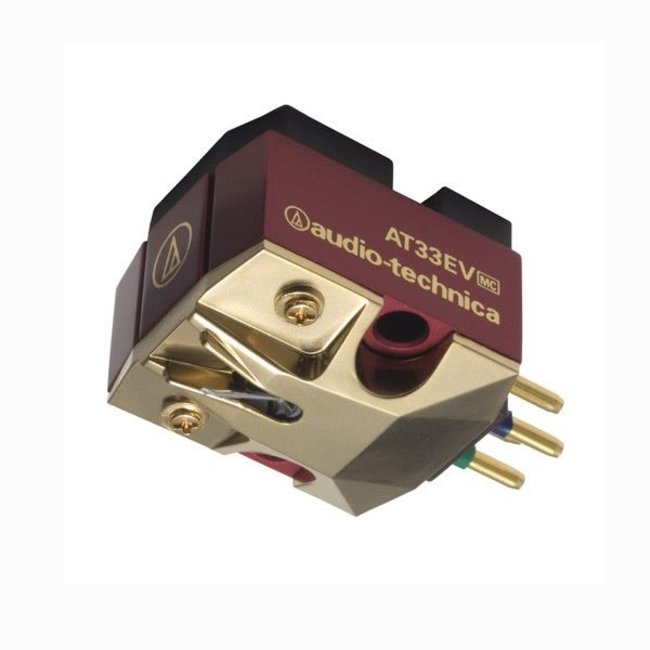

AT33EV Dual Moving Coil
MC 0.3mV Oval tip on Duralumin tapered pipe 6.9g
The A33EV isa ½ inch, standard mount 0.3 x 0.7 mil elliptical cartridge featuring a tapered Duralumin cantilever which reduces the effective mass of the cartridge, resulting in a more durable cantilever. The Dual Moving Coil cartridge design increase...
Check the User Manual here
:
http://www.audio-technica.com/cms/resource_library/literature/7494bb049de0cc42/at33ev_manual.pdf
The original model of this stereo cartridge is the AT33ANV, which was available as a special release to celebrate our 45th anniversary. The A33ANV was the first in the AN33 series to feature a Duralumin cantilever, which received wide acclaim for its sound quality. Retaining the basic specification, we present a further improved and evolved model.
The A33EV isa ½ inch, standard mount 0.3 x 0.7 mil elliptical cartridge featuring a tapered Duralumin cantilever which reduces the effective mass of the cartridge, resulting in a more durable cantilever. The Dual Moving Coil cartridge design increases channel separation and extends the frequency response range delivering extraordinary audio quality. Internally constructed with a neodymium magnet enhances magnetic energy and PCOCC wire for pure audio transmission.
- Elliptical stylus chip and durable duralumin tapered pipe cantilever.
- 10 ohm mid impedance specifications.
- Dramatically increased magnetism with neodymium magnets and PCOCC as the coil.
- High separation, wide-response dual moving coil.
- VC Mold eliminates unnecessary vibrations.
- "Hanenite" anti-vibration rubber eliminates unwanted vibrations.
Output voltage: 0.3mV
Channel balance 1kHz: 0.5dB
Channel separation 1kHz: 30dB (1kHz)
Frequency range: 15-50.000Hz
Compliance: 10x10-6cm/dyne (100Hz)
Stylus type: Oval tip on Duralumin tapered pipe
Stylus tip radius: (0.3x0.7mil)
Tracking force range: 1.8-2.2g
Tracking force recommended: 2.0g
Tracking angle: 23degr
Internal impedance DC: 10ohm
Internal inductance: 22uH
Recommended load Resistance: More than 100 ohm
Cartridge weight: 6.9g
