Audio Technica

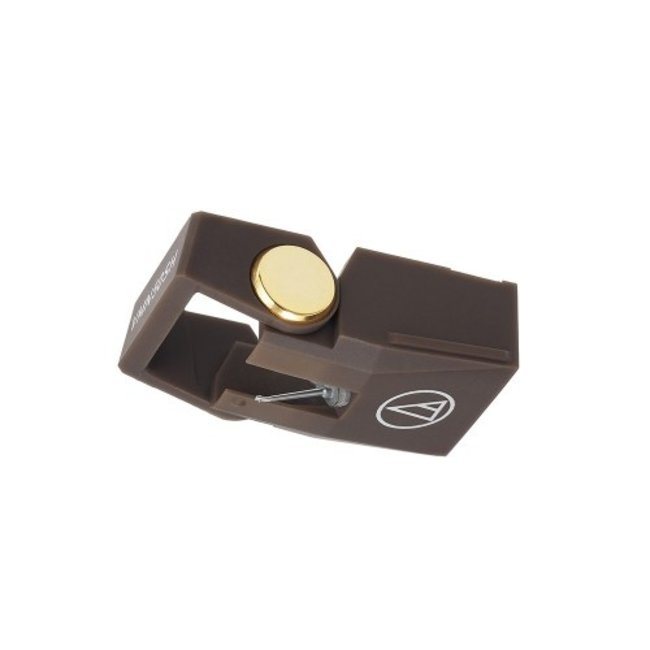

VM750VM750SH STYLUS =Replacement stylus for VM750SH

  MM   4.0mV (1kHz, 5cm/sec.)   Shibata (Nude Square Shank)   8.0g

Replacement stylus for VM750SH

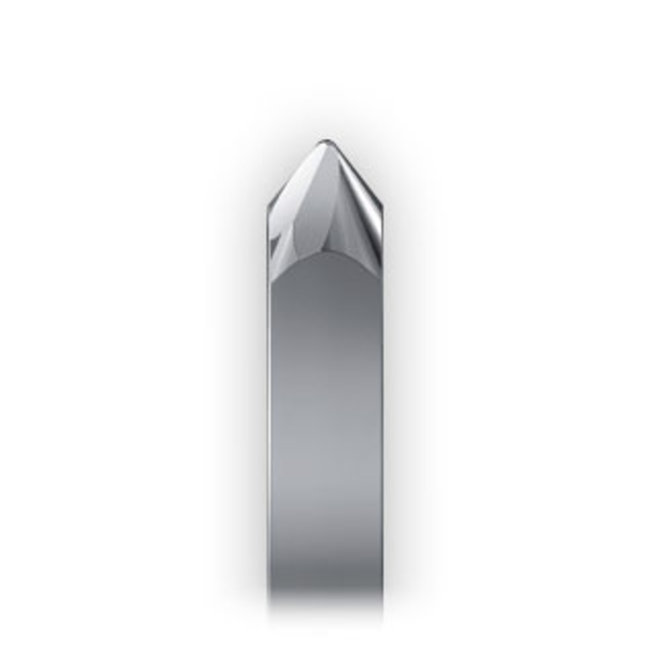

Shibata stylus
Nude Square Shank construction
Even the finest diamond stylus becomes worn after an extended period of play.The styli in our VM cartridges are no different. But it is easy to replace the stylus an

Availability:   In Stock
Delivery time:
€289,00 Incl. VAT (BTW)
Quantity:    In Basket

Replacement stylus for VM750SH

  • Shibata stylus
  • Nude Square Shank construction
  • Brown

Even the finest diamond stylus becomes worn after an extended period of play.The styli in our VM cartridges are no different. But it is easy to replace the stylus and continue to use your cartridge. Our renewed VM cartridges have 7 styli and 3 types of bodies to choose from. Not only is it not necessary to buy an entirely new cartridge, but you can also enjoy the experience of upgrading your stylus or trying a new cartridge/stylus combination.

Cartridge system: MM
Output voltage: 4.0mV (1kHz, 5cm/sec.)
Channel balance 1kHz: 1.0dB (1kHz)
Channel separation 1kHz: 30dB (1kHz)
Frequency response: 20 - 27,000Hz
Compliance: dynamic 10 x 10-6 cm/dyne (100Hz); static40 x 10-6 cm/dyne
Stylus type: Shibata (Nude Square Shank)
Stylus tip radius: 0.26 x 2.7 mil
Tracking force range: 1.8 – 2.2g (2.0g standard)
Tracking force recommended: 2.0 grs (20mN)
Tracking angle: 23˚ degr
Internal impedance DC: 800 ohms
Internal inductance: 460 mH (1 kHz)
Recommended load Resistance: 47,000Ω ohm
Recommended load capacitance: 100 – 200pF
Cartridge weight: 8.0g
Replacement stylus: VMN50SH
