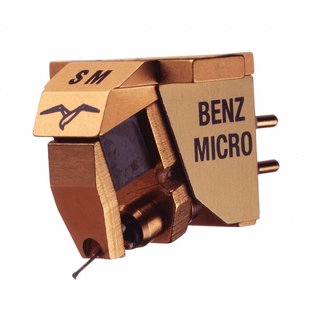

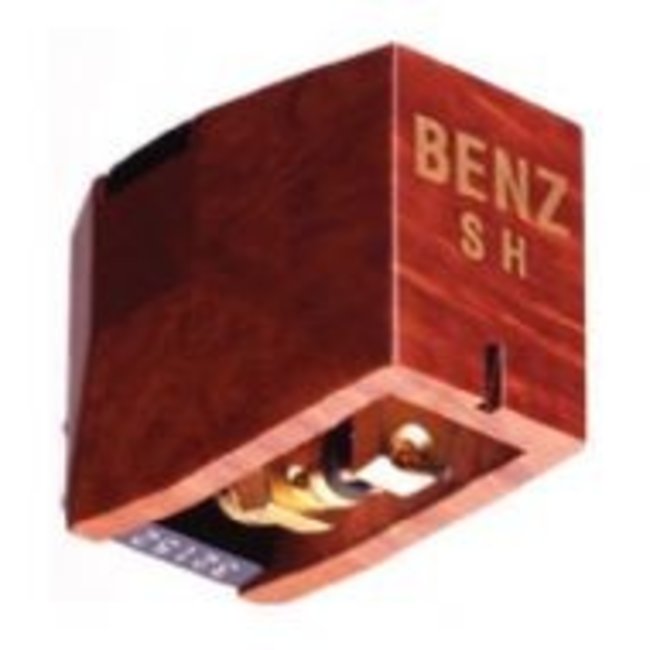

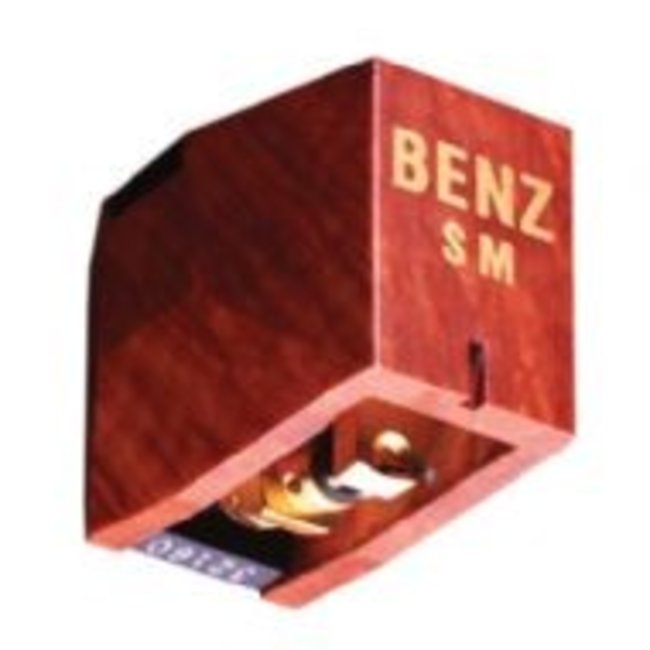

Benz Micro
Wood SH/SM/SL
MC 0.4/08/2.5mV Micro Ridge Stylus 9g
Albert Lukaschek began researching increased performance and uniformity of his cross-coil designs while developing the Benz Micro Ebony H, L and TR models. Experimenting with the length of the solid Boron cantilever revealed how the elasticity of thi...
Albert Lukaschek began researching increased performance and uniformity of his cross-coil designs while developing the Benz Micro Ebony H, L and TR models. Experimenting with the length of the solid Boron cantilever revealed how the elasticity of this very stiff material affected compliance and trackability.
Development of a grooved rear pole piece for countersinking the o-ring damper, first introduced on the Benz Micro Ruby square plate cartridges, was then adapted to the cross-coil designs, given their lower contact area and damping characteristics. The lower mass coils and matched cantilevers of the new Benz Micro S-Class retain their real world output levels and with their improved styli, offer heightened performance.
These cartridges yield one of the best performance/value ratios in cartridge market, regardless of output level.

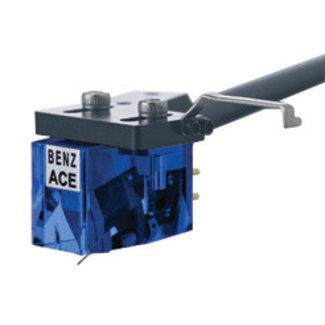

The S-Class models of the Wood Body SL (low-output), SM (medium) and SH (high), the Glider SL, SM, SH, and the ACE SL, SM, SH all incorporate the Benz Dynascan system with a Gyger S stylus coupled to improved generators using new coil windings and refined pole pieces/damper designs. Albert Lukaschek began researching increased performance and uniformity of his cross-coil designs while developing the Benz Ebony H, L and TR models. Experimenting with the length of the solid Boron cantilever revealed how the elasticity of this very stiff material affected compliance and trackability. Development of a grooved rear pole piece for countersinking the o-ring damper, first introduced on the Benz Ruby square plate cartridges, was then adapted to the cross-coil designs, given their lower contact area and damping characteristics. The lower mass coils and matched cantilevers of the new S-Class retain their real world output levels and with their improved styli, offer heightened performance. These cartridges yield one of the best performance/value ratios in cartridge market, regardless of output level. Benz Wood SL Specifications # Output: .4mV # Stylus: 5x120µm # Impedance: 12 ohms # Loading range: >100 ohms # Weight: 9g # Compliance: 15cu # Tracking force: 1.6-1.9g
Output voltage: 0.4/08/2.5mV
Compliance: 15cu
Stylus type: Micro Ridge Stylus
Stylus tip radius: 5x120µm
Tracking force range: 1.6-1.9g
Internal impedance DC: 12/24/90 ohms
Recommended load Resistance: >100 ohms
Cartridge weight: 9g
