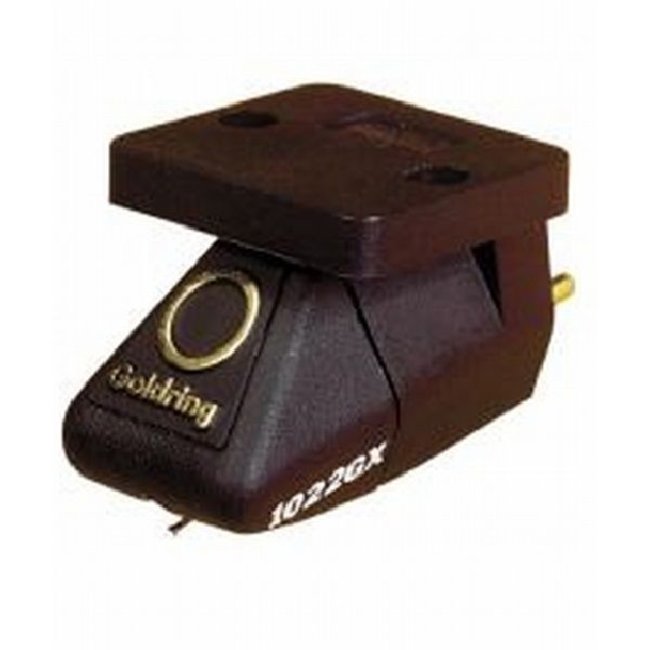

Goldring
G 1022 GX
MM 6.5 mV ±1.5dB, 1kHz @ 5 cm/sec 6.3 g
The 1022GX record cartridge is recommended for the discerning listener. The diamond stylus is a Gyger-1 fine line-contact type, which provides increased resolution and ensures the maximum accuracy of musical reproduction.
Availability:
In Stock
Delivery time:
€389,00
Incl. VAT (BTW)
The 1022GX record cartridge is recommended for the discerning listener. The diamond stylus is a Gyger-1 fine line-contact type, which provides increased resolution and ensures the maximum accuracy of musical reproduction.
Cartridge system: MM
Output voltage: 6.5 mV ±1.5dB, 1kHz @ 5 cm/sec
Channel balance 1kHz: 2 dB @ 1 kHz
Channel separation 1kHz: 25 dB @ 1 kHz
Frequency response: 20Hz - 20kHz ±3 dB
Compliance: 24 mm/N lat., 16 mm/N vert
Tracking force range: 1.5 - 2.0 g (1.7g nom.)
Tracking angle: 24°
Internal inductance: 570 mH
Recommended load Resistance: 47 kΩ
Recommended load capacitance: 150 - 200 pF
Cartridge weight: 6.3 g
Output voltage: 6.5 mV ±1.5dB, 1kHz @ 5 cm/sec
Channel balance 1kHz: 2 dB @ 1 kHz
Channel separation 1kHz: 25 dB @ 1 kHz
Frequency response: 20Hz - 20kHz ±3 dB
Compliance: 24 mm/N lat., 16 mm/N vert
Tracking force range: 1.5 - 2.0 g (1.7g nom.)
Tracking angle: 24°
Internal inductance: 570 mH
Recommended load Resistance: 47 kΩ
Recommended load capacitance: 150 - 200 pF
Cartridge weight: 6.3 g
