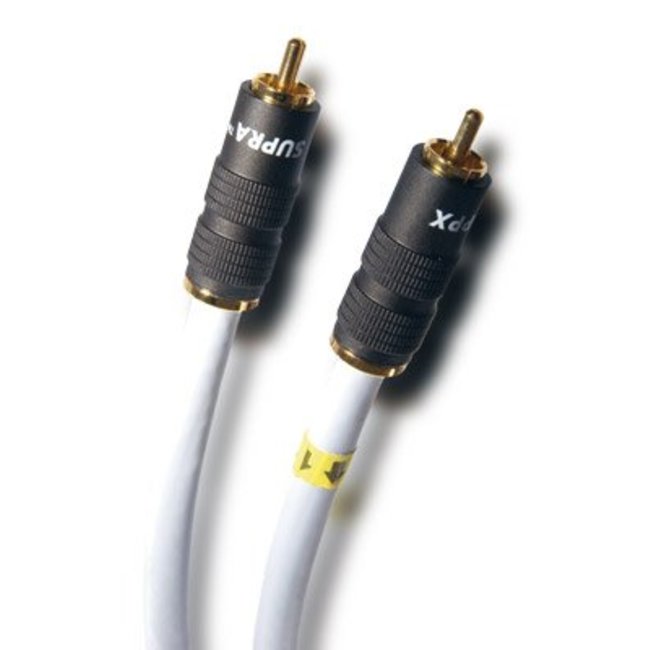

digital rca -- rca

The 75 Ohm digital interconnects have the capability to transfer the full digital spectrum and can be used with a number of 75 Ohm applications

Availability:   Out of Stock
Delivery time:   1 week after order
€69,00 Incl. VAT (BTW)
Would you like an email when in stock?   yes, please

The basic specification is as follows:
Very low capacitance, only 58pF/metre, and insulated with PE foam, leading to a propagation velocity of 0.78 light speed.

Double shielded, with an inner braid of silver plated OFC and an outer braid of bare OFC.

The two shields together provide efficient noise protection from external sources.

The silver plated signal carrying inner conductor enhances the high frequency properties of the cable, leading to an extremely low level of attenuation : 0.6 dB per 100 metres at 1.0 MHz and just 7.1 dB per 100 metres at 100 MHz!

True 75 ohm characteristic impedance (+/- 1.5 Ohm upto 100 MHz
