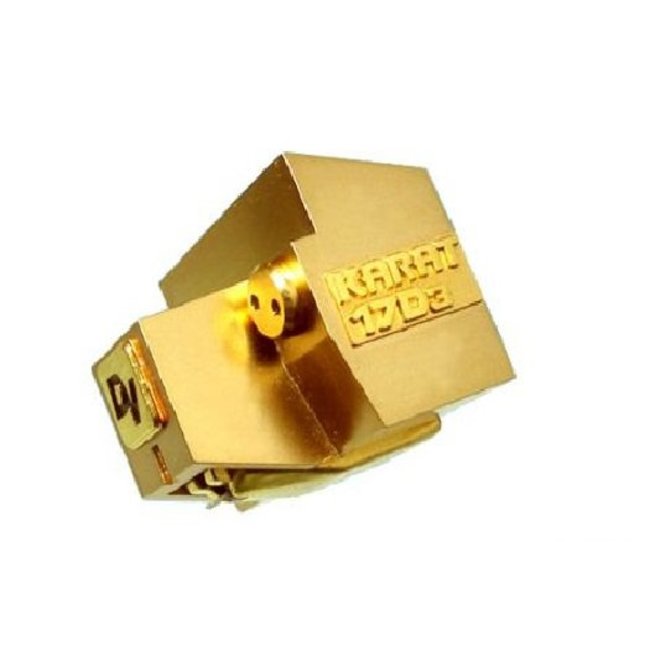

Dynavector
DV Karat 17D3
MC 0.3mV (at 1KHz, 5cm/sec.) Micro-Ridge 5.8 grams
The new 17D3 Karat Diamond is the first cartridge built using 'dispersion' theory. Its Micro-Ridge stylus and very short (1.7mm) solid diamond cantilever give a huge reduction in 'frequency dispersion', unmatched dynamics and a high frequency ext...
Availability:
Out of Stock
Delivery time:
10-14 days
€1.350,00
Incl. VAT (BTW)
The new 17D3 Karat Diamond is the first cartridge built using 'dispersion' theory. Its Micro-Ridge stylus and very short (1.7mm) solid diamond cantilever give a huge reduction in 'frequency dispersion', unmatched dynamics and a high frequency extension all the way up to 100kHz. The latest patented magnet circuit design increases the output to 0.3mV with crystal clear mid-range and treble even during the largest symphonic crescendos
Cartridge system: MC
Output voltage: 0.3mV (at 1KHz, 5cm/sec.)
Channel balance 1kHz: 1.0 dB (at 1KHz)
Channel separation 1kHz: 25 dB (at 1KHz
Frequency response: 20 - 20,000Hz (± 1dB), 20 - 100,000Hz
Compliance: 15 x 10-6 cm/dyn
Stylus type: Micro-Ridge
Tracking force range: 1.8 - 2.2grams
Internal impedance DC: R=32 ohms
Recommended load Resistance: > 100 ohms
Cartridge weight: 5.8 grams
Output voltage: 0.3mV (at 1KHz, 5cm/sec.)
Channel balance 1kHz: 1.0 dB (at 1KHz)
Channel separation 1kHz: 25 dB (at 1KHz
Frequency response: 20 - 20,000Hz (± 1dB), 20 - 100,000Hz
Compliance: 15 x 10-6 cm/dyn
Stylus type: Micro-Ridge
Tracking force range: 1.8 - 2.2grams
Internal impedance DC: R=32 ohms
Recommended load Resistance: > 100 ohms
Cartridge weight: 5.8 grams
