MC 0,5mV Nude Elliptical 9,0g
The Quintet Blue is a very homogeneous cartridge whose sound image will tend to more smooth reproduction compared to Quintet Red and moderate dynamic strength compared to Quintet Bronze.
It features a Nude Elliptical diamond mounted on an aluminium ...
The MC Quintet Series is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.
A special ABS (Acrylonitrile/Butadiene/Styrene) thermoplastic material is used for manufacturing of the body. This light-weight, impact resistant material is very suitable for injection-moulding and provides a very durable scratch resistant surface.
Neodymium magnets are implemented to achieve an optimal output.
Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers.
Ease of use
Top-mounting of the Quintet cartridges is easy and secure using the screws supplied. The aluminuim frame has threaded mounting holes and is fitted easily with the 5mm or 7mm screws depending on the thickness of the headshell.
The Quintet series’ right angles, straight lines, stylus visibility and ample distance between the record surface and the cartridge’s bottom will make it easy to mount and align the cartridge and tonearm correctly. The Quintet Series gives excellent results with most common tonearms.

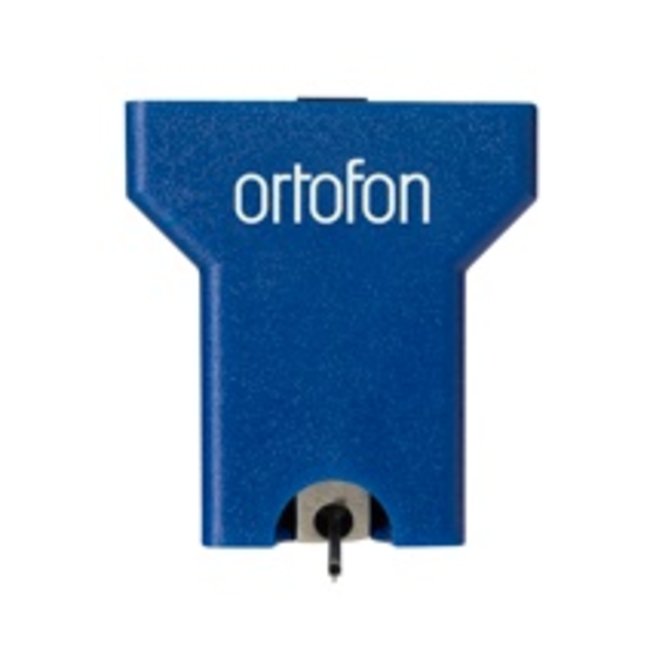

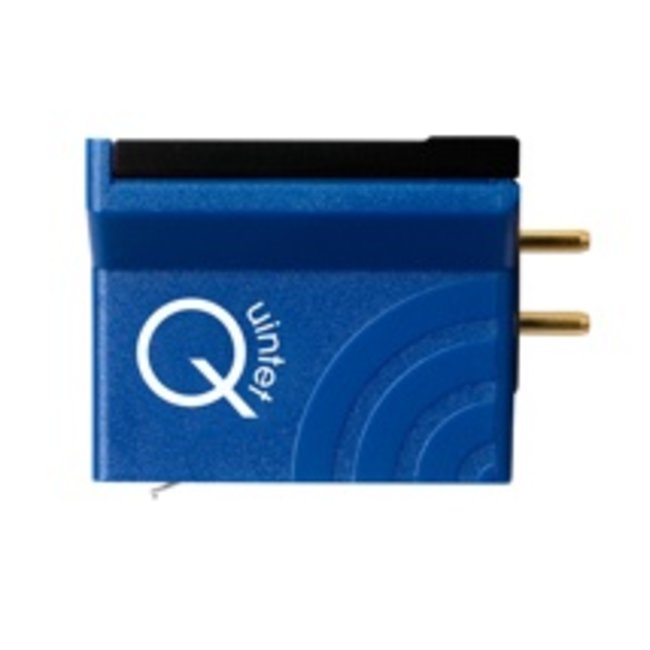

The Quintet Blue
The Quintet Blue is a very homogeneous cartridge whose sound image will tend to more smooth reproduction compared to Quintet Red and moderate
dynamic strength compared to Quintet Bronze. It features a Nude Elliptical diamond mounted on an aluminium cantilever. The Quintet Blue will bring more space, depth and detail into the sound and is a very good choice for any kind of music, especially rhythmic.
Output voltage: 0,5mV
Channel balance 1kHz: <1.5dB
Channel separation 1kHz: >21dB
Frequency range: 20-25.000Hz
Frequency response: 20-20.000Hz +2,5dB -2,5dB
Tracking ability: 70um
Stylus type: Nude Elliptical
Stylus tip radius: r/R 8/18um
Tracking force range: 2,1-2,5g (21-25mN)
Tracking force recommended: 2,3g (23mN)
Tracking angle: 20degr
Internal impedance DC: 7 Ohm
Recommended load Resistance: >20 Ohm
Cartridge weight: 9,0g
Replacement stylus: none
