ProJect

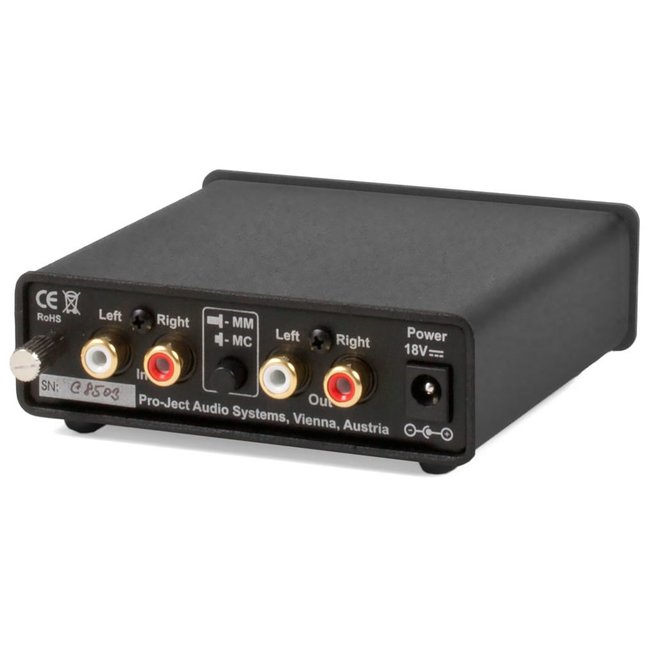

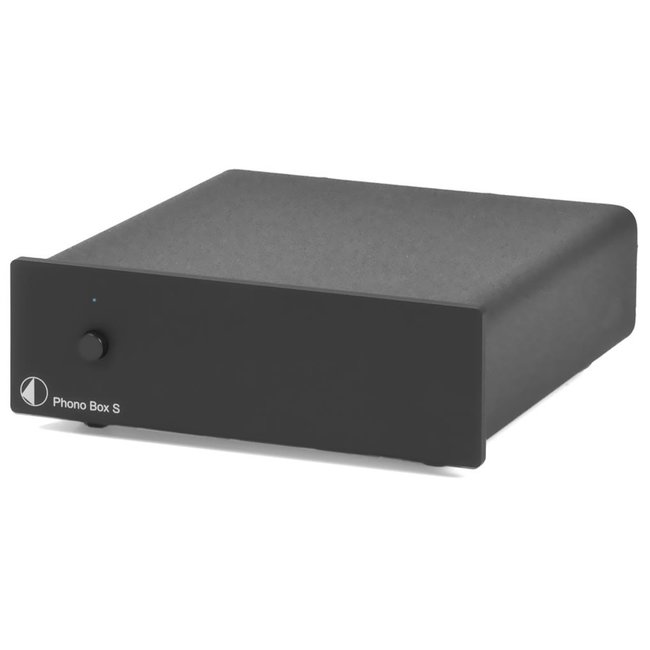

Phono Box S
MM/MC phonostage
Sonic quality of Phono Box S is extremely impressive, a big improvement and a perfect upgrade for most analogue hifi system.
With a wide range of setting parameters, it can meet the needs of almost any phono cartridge on the market. A switchable s...
audiophile, versatile & affordable!
This new phono preamplifier offers unrivalled performance and unique flexibilty, which never before was available at this price!
Sonic quality of Phono Box S is extremely impressive, a big improvement and a perfect upgrade for most analogue hifi system.
With a wide range of setting parameters, it can meet the needs of almost any phono cartridge on the market. A switchable subsonic filter prevents your amplifier and speakers of ultra low rumble below 20Hz. Carefully selected amplifier modules and audiophile-grade polypropylene capacitors make it possible to enjoy your valuable vinyl collection like never before!
• Audiophile Performance
• Dual mono configuration
• Audiophile-grade amplification modules
• Audiophile-grade polypropylene WIMA capacitors
• Precise RIAA equalisation
• Switchable Subsonic filter –12dB @ 20Hz

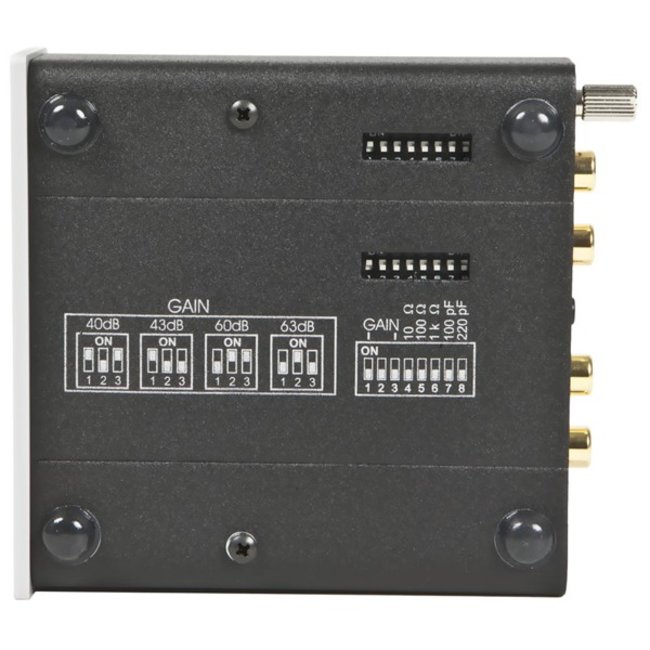

• Switchable input impedance/capacitance
• 4 adjustable gain levels
• Outstanding sound quality
download the user manual here: user manual pdf
Input impedance, MM: 47k Ohm 100/200/320/420pF
Input impedance, MC: 10/100/1000 Ohm 100/200/300/420pF
Gain, MM: 40dB/43dB switchable
Gain, MC: 60dB/63dB switchable
Noise floor, MM: 86dB (94dB-A weighted)
Noise floor, MC: 68dB (75dB-A weighted)
THD, MM: 0,01%
THD, MC: 0,05%
RIAA curve accuracy: 20Hz-20kHz max 0,4dB
Power Supply: 18V/500mA DC, included
Standby power consumption: <1 W
Dimensions (mm): 103 x 36 x 104 (115 with sockets)
Weight: 570g
