Manual + New model with S-shaped Carbon tonearm
The New Pro-Ject RPM-1 Carbon utilizes a lot of innovations and enhancements: A low resonance chassis holds a newly designed inverted platter bearing with ceramic ball for further reduced rumble. An outboard 15V AC motor is smoothly driven using an u...

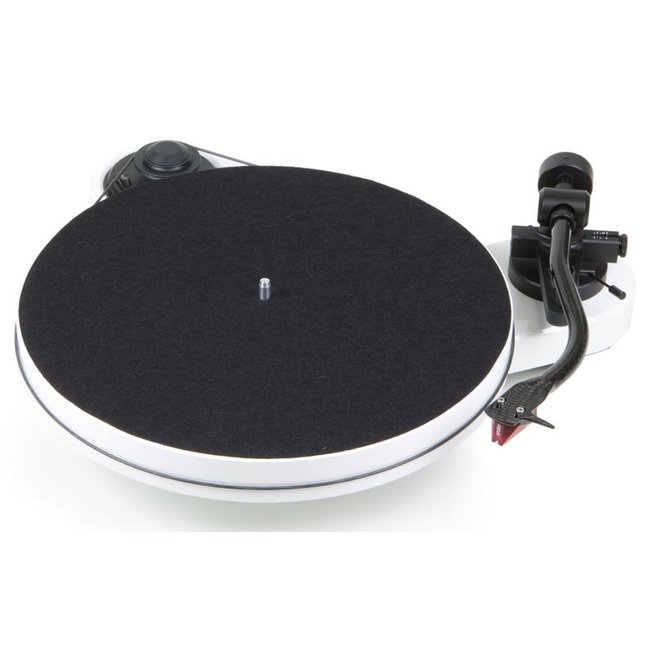

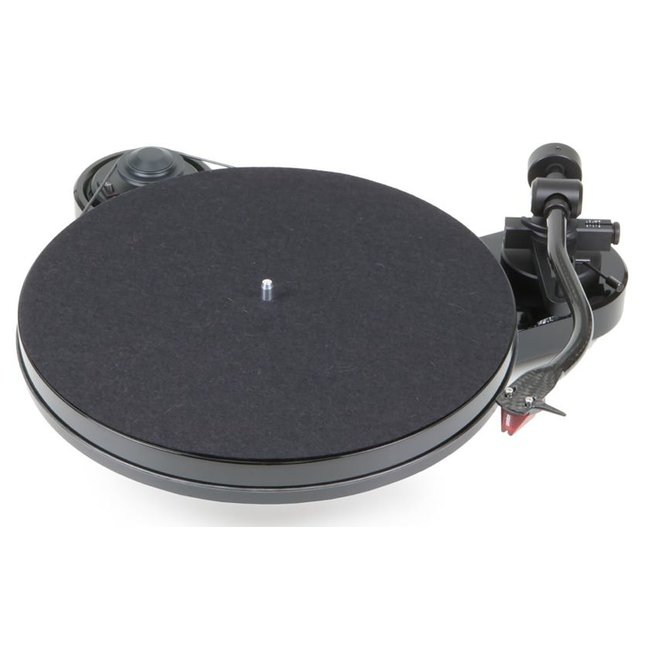

The Pro-Ject RPM-1 Carbon utilizes a lot of innovations and enhancements: A low resonance chassis holds a newly designed inverted platter bearing with ceramic ball for further reduced rumble. An outboard 15V AC motor is smoothly driven using an ultra-precision AC generator with DC power supply for further enhanced speed stability. A completely new designed S-shaped tonearm tube is made from carbon fiber, aluminum and resin. Using a complex 3-step process with heat treatment and 100bar pressure, arm tube rigidity is strenghtened, internal damping is maximized and resonances are reduced to a minimum. This makes the tonearm also suitable for MC cartridges.
Additional features are a new magnetic antiskating mechanism and a TPE-damped counterweight. All these ingredients add up to a miracle in sound for the price and ultra-stylish look.
The RPM1 Carbon is available in highglos red, highgloss white and highglos black.

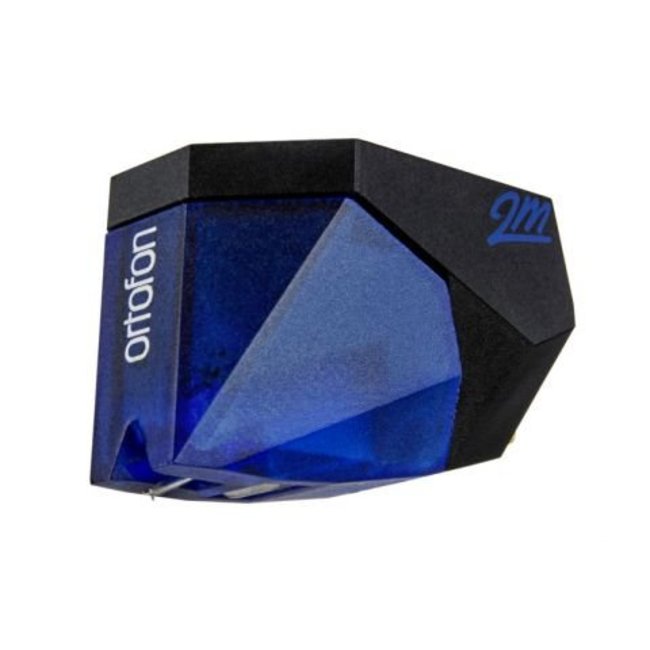

You can choose one of our cartridge options, best price performance gives the Ortofon 2Mred. The 2Mblue has a different stylus shape which results in less noise from scratches and record wear, highly recommended!
You are welcome to have a listen at our shop in Den Haag.
Download the manual here
Please note: You need a cartridge to play music.... no cartridge means no needle :-(
Cartridge: Choose a cartridge option
Drive Principle: Belt drive
Bearing: Inverted stainless steel axle with ceramic ball
Wow & Flutter: 33: +/- 0,14% I 45: +/- 0,13%
Speed drift: 33: +/- 0,27% I 45: +/- 0,19%
Signal to Noise: - 71dB
Tonearm: 8,6” carbon; aluminium and resin
Effective arm length: 218,5 mm
Effective arm mass: 13,5 g
Tracking force: 0 - 25mN
Power connection: 110/240 Volt - 50 or 60 Hz (external adapter, included)
Included accessoiries: 15 volts DC / 500 mA power supply, Felt plattermat
Standby power: 5 watt max / < 0,5 watt standby
Dimensions: 380 x 110 x 350mm (WxHxD)
Weight: 3,8 kg net
extra tt info: New model with S-shaped Carbon tonearm
