Ortofon

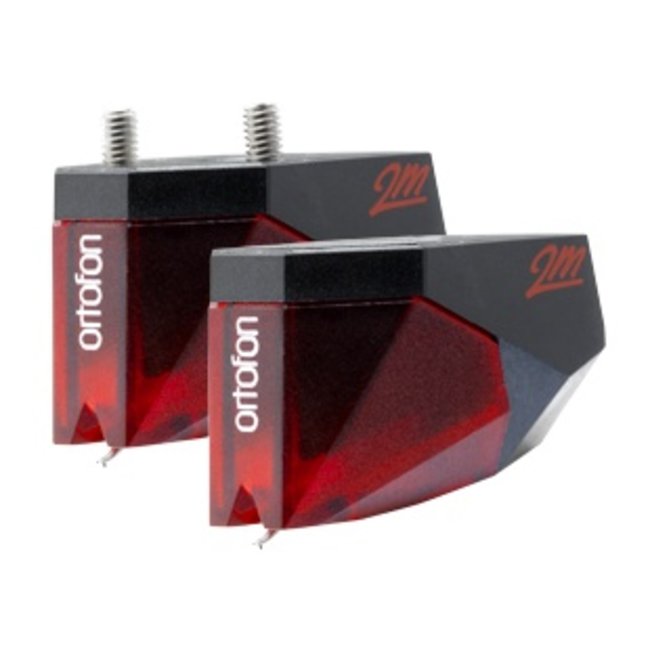

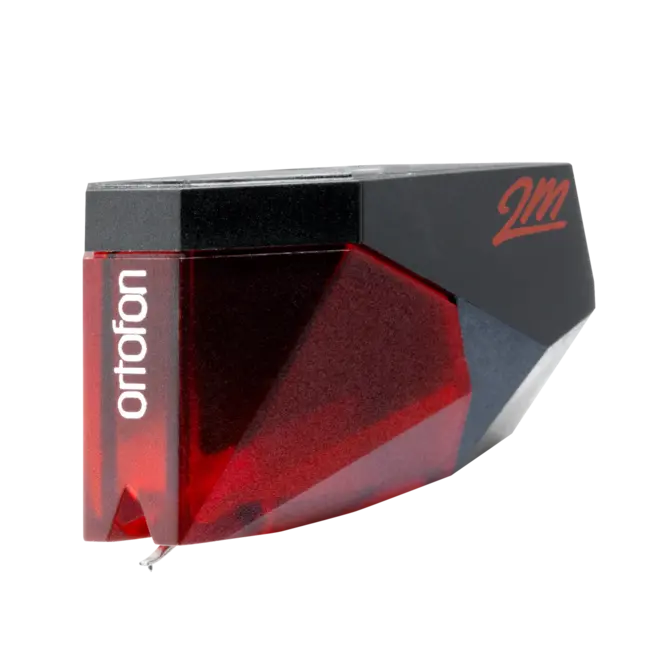

2MRed Cartridge (Standard or Verso)
MM 5,5 mV Elliptical 7,2 g
The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without coloring the sound
Also Verso mount available!
The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without coloring the sound
The name 2M was selected among several ideas. We wanted a modern name that would be easy to pronounce and to remember, and therefore an alpha numerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.
The 2M series of cartridges feature Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and Super OM series.
We have optimized the design for ease of mounting the cartridge, weight and size to fit the most common turntables at the market today. 2M Series provides excellent compatibility in an assortment of playback systems and with a wide variety of phono preamps. To find the recommended Ortofon replacement cartridge for your turmtable/tonearm please visit our Replacement cartridges selector ».
The 2M Red Series features:
- an improved engine, which provides an increased output of 5.5mV
- a tipped Elliptical diamond and split pole pins with a copper wire
-
1 x Stylus brush
-
1 x Screwdriver
-
2 x Screw M2,5 x 5
-
2 x Screw M2,5 x 7
The new 2M Red Verso is an alternative product for bottom mount tonearms
included:
-
1 x Stylus brush
-
1 x Allen key Torx 6
-
1 x Allen key Torx 8
-
2 x Screw M2,0 x 6
Output voltage: 5,5 mV
Channel balance 1kHz: 1,5 dB
Channel separation 1kHz: 22 dB
Frequency range: 20-22000 Hz
Frequency response: 20-20.000 Hz + 3 / - 1 dB
Tracking ability: 70 µm
Compliance: 20 µm/mN
Stylus type: Elliptical
Stylus tip radius: r/R 8/18 µm
Tracking force range: 1,6-2,0g (16-20 mN)
Tracking force recommended: 1,8 g (18 mN)
Tracking angle: 20°
Internal impedance DC: 1,3 kOhm
Internal inductance: 700 mH
Recommended load Resistance: 47 kOhm
Recommended load capacitance: 150-300 pF
Cartridge weight: 7,2 g
Replacement stylus: Stylus 2Mred
